The faster the flow of the fluid the greater the voltage signal generated. The flow principle behind magnetic flow meters is known as faraday s law mathematically defined as e k b d v. According to this principle when a conductive medium passes through a magnetic field b a voltage e is generated which is proportional to the velocity v of the medium the density of the magnetic field and the length of the conductor.

making motorcycle control cables overhead door dallas residential mariwasa vinyl tiles price list managing chronic laminitis mango hardwood flooring make room spray outswing door security bar main double door designs pictures

Electromagnetic Flow Meter

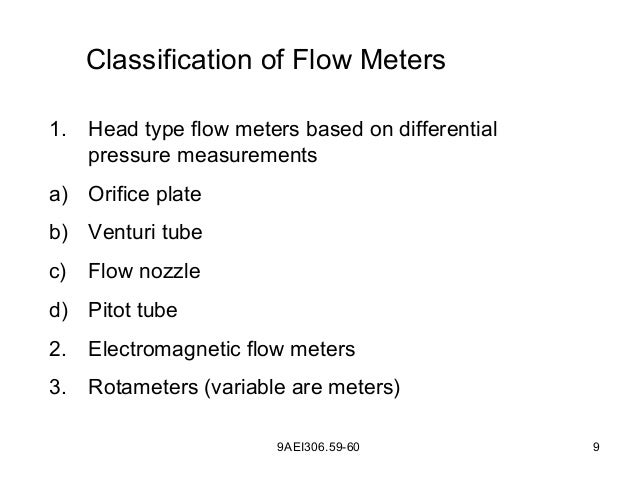

Flow Sensors

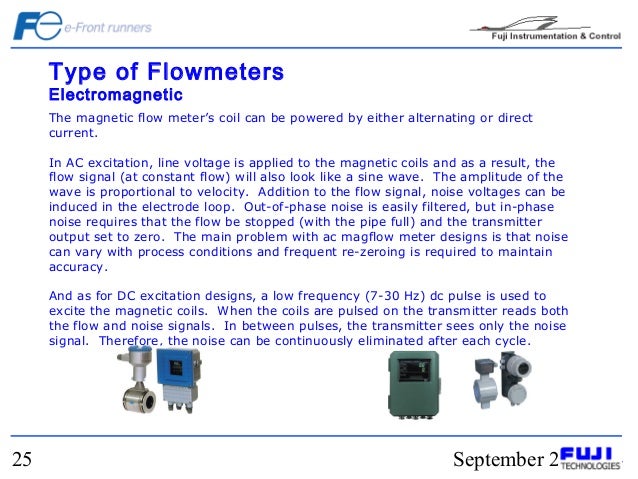

Electromagnetic Flow Measurement

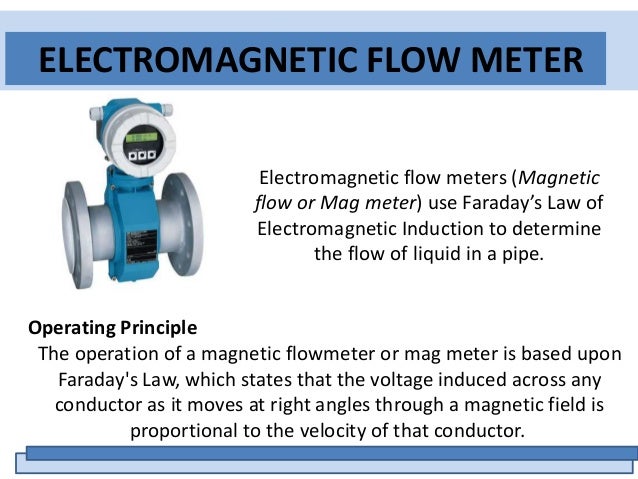

Electromagnetic Flow Meter Flow Knowledge Keyence America

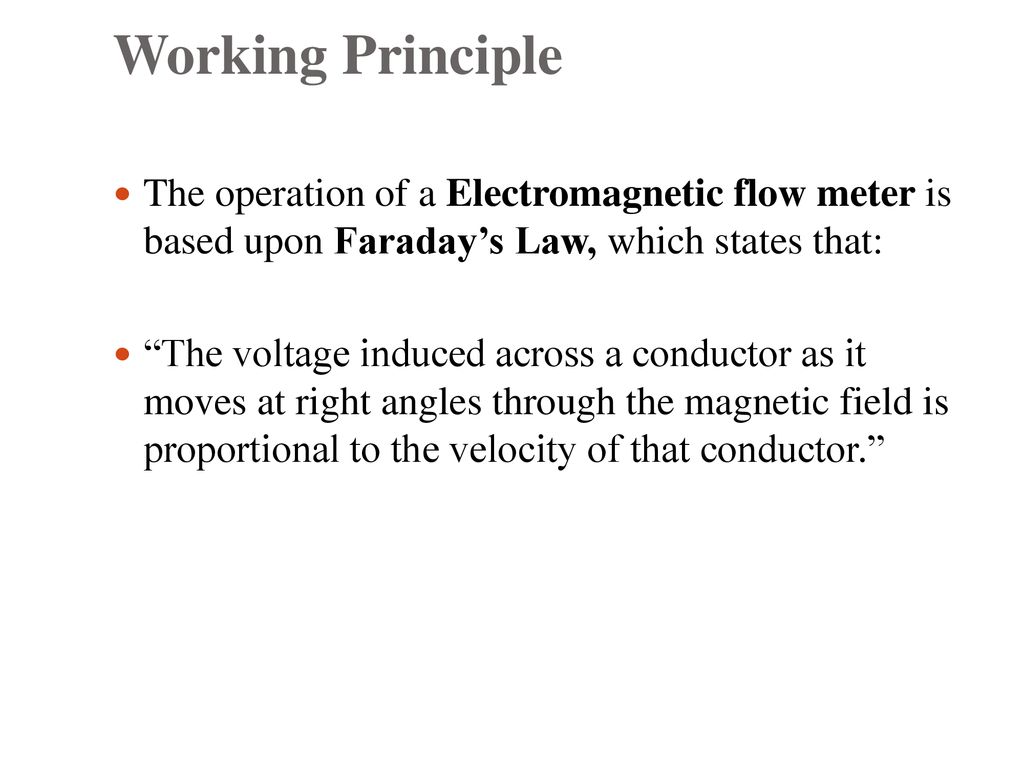

Electromagnetic Flow Meters Working Principle Instrumentationtools

Turbine Flow Meter Working Principle Instrumentationtools

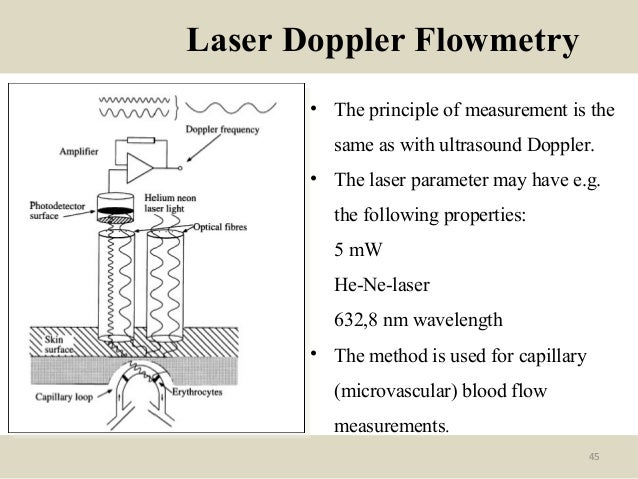

Principle of electromagnetic blood flow measurement 4.

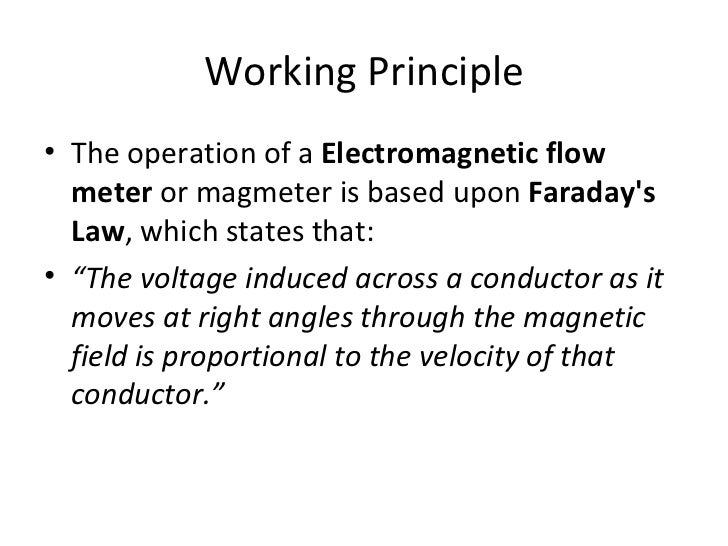

Magnetic flow meter working principle ppt. A magnetic field is applied to the metering tube which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. Magnetic flow meter animation s bharadwaj reddy july 22 2015 april 1 2020 a magnetic flow meter mag meter electromagnetic flow meter is a transducer that measures fluid flow by the voltage induced across the liquid by its flow through a magnetic field. Principle of electromagnetic blood flow meters 3. If you continue browsing the site you agree to the use of cookies on this website.

How does a magnetic flow meter work. In this week s video learn how magnetic flow meters work. The induced voltage e is directly proportional to the velocity v of the fluid moving through the magnetic field b. Slideshare uses cookies to improve functionality and performance and to provide you with relevant advertising.

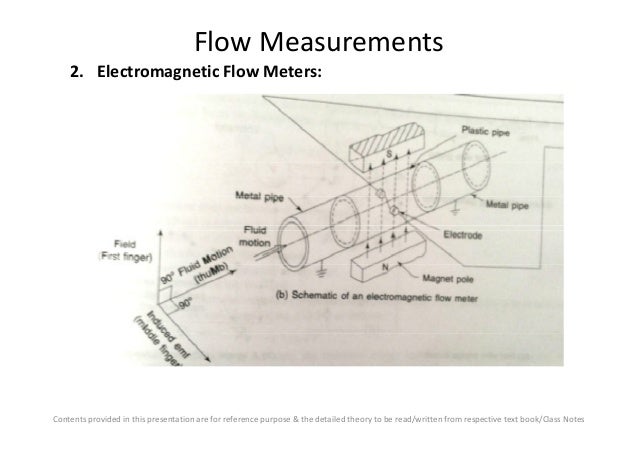

Principle of electromagnetic blood flow meters a permanent magnet or electromagnet positioned around the blood vessel generates a magnetic field perpendicular to the direction of the flow of the blood. The physical principle at work is electromagnetic induction and mathematically defined as e k b d v. Magnetic flow meters works based on faraday s law of electromagnetic induction. Magnetic flow meters use a magnetic field to generate and channel liquid flow through a pipe.

Want to learn more. Principle of magnetic flow meter based on faraday s law. These meters are also called as magflow or electromagnetic flow meters. Electromagnetic flow meter is a volumetric flow meter which measures the flow of liquid by the induced voltage across liquid by its flow through a magnetic field using faraday s law of induction where no moving part makes it ideal for wastewater applications or any dirty liquid which is conductive or water based.

A voltage signal is created when a conductive liquid flows through the flowmeter s magnetic field. The induced voltage is carried to the transmitter through the electrode circuit. Basic idea and principle of electromagnetic flow meter.
